Textile Dyeing Machinery

Introduction

Dalal Engineering, a pioneer in High Temperature, Hiqh Pressure dyeing technology in India, was set up over 60 years ago in collaboration with M/s Obermaier & Cie of Germany and has steadily grown into a universally acknowledged manufacturer in the sphere of package dyeing plants. We have maintained our position of market leader, by constantly updating our technology through continuous research and development.

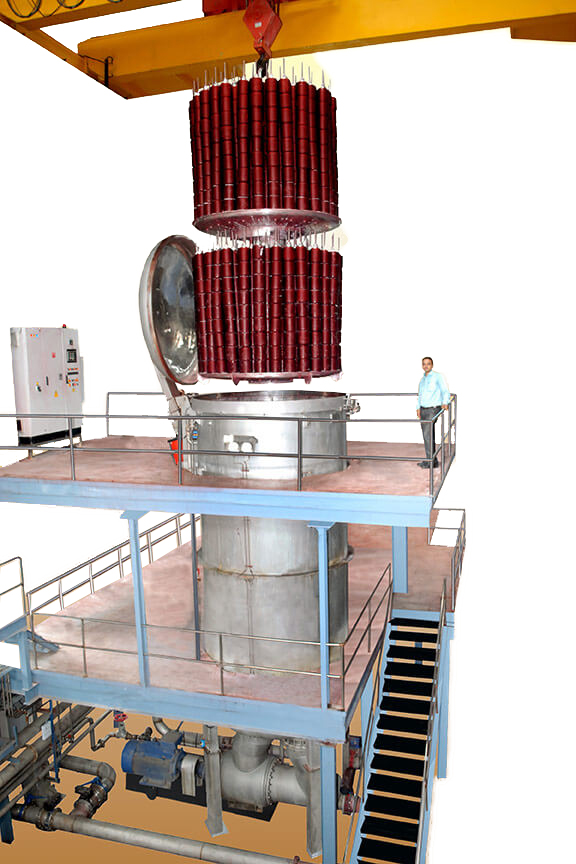

We have successfully installed over 1600 dyeing plants all over the country and even abroad. Be it 100 Gms or 3000 Kgs, we have the expertise to manufacture the dyeing plants to match customer's exact specifications. Our states-of-the art manufacturing plant is strategically located, on the outskirts of Mumbai, having latest equipment for manufacturing and testing the dyeing plants.

Our current range of machines is now more eco-friendly, with features like Air Pad system for reduced water, steam, power and dyes / chemicals consumption and Variable Frequency Drive for greater energy efficiency. The MLR is as low as 1:3 to 1:5 depending upon substrate.

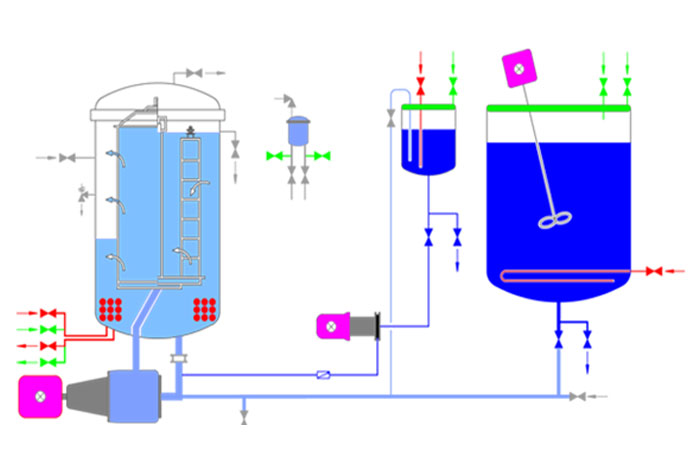

Today the dyeing manager expects 'First Time Right' results from package dyeing plants to meet shorter delivery schedule at lowest operating cost. To achieve repeatability of shades in production, the main liquor-circulating pump plays a very important role. Dye Liquor is required to be circulated for making maximum number of contacts without damaging the textile substrate and Pump should have characteristics which achieve just-right liquor flow through the material.

Our Turbo pump achieves this result effortlessly. It is an axial flow pump which delivers adequate flow at a pressure suitable for dyeing textile packages of up to 400-450 gms/ltr density. It works with reverse characteristics of that of centrifugal pump. Centrifugal pump need variable frequency drive (VFD) for speed reduction since the pressure developed at rated speed of motor would be too high. Turbo pump pressure gets automatically adjusted in accordance with material permeability while VFD optimises the power consumption. Liquor flow reversal by changing direction of rotation of the pump motor helps reduce complicated flow reversal mechanism which involves higher maintenance and break-downs. With Turbo Pump, additional pumps are not required for filling the machine or for transferring the liquor back from machine to Stock tank.
Textile Dyeing Machinery

Salient Features

Air Pad System:

This feature makes it a most cost effective & environmentally friendly application. Its advantages are:

  • Reduced water quantity to bring down steam, electricity and chemical requirements.
  • Uniform temperature in kier volume and excellent exhaustion of dyestuff
  • In vat dyeing of cotton, the dye liquor is not subject to continuous oxidation by external air
  • Reduced air pollution as dissolved chemicals do not escape to air

 Variable Frequency Drive:

Inverter controlled turbo pump motor helps achieve automatic step less speed control in both directions of flow. VFD reduces power consumption during start up, flow reversal and partial load dyeing.



Adjustable Liquor Ratios:

Best liquor ratio can be selected depending on various process parameters with Analog Level Controller for complete dyeing process

  • Low liquor ratio during dyeing
  • Minimum MLR can be selected for Full Load or Partial Load dyeing phase
  • Ultra-low liquor ratio can be selected, whenever possible, for dyeing and subsequent washing cycles

Safety and Interlock Systems:

The main lid of the machine is in 3-piece OSV type lid, operating with a pneumatic lifting and lowering cylinder and all required safety locks such that it cannot be opened unless the machine is fully depressurized and temperature is below 80° C.

  • Auto pressure control valve set at 4 kg/cm2. Releases built-up pressure
  • Mechanical pressure safety valve set at 4.5 kg/cm2
  • Main pump protection to safeguard against dry run
  • Interlocking of “Heating On” and main pump motor

Automation

Dalal Package Dyeing Machines have an imported micro controller and PLC. They can also be linked to a central host computer station for dye-house management. The machines have an industrial PC with graphic touch screen interface. Some of the automated functions are:
  • Filling – several types of water to a number of levels.
  • Filling to a programmed quantity.
  • Ratio fill – allowing quantity filling in relation to the material weight.
  • Filling with analog level sensor to any programmed percentage.
  • Flow reversal programme – allowing the selection of the duration of flow in each direction.
  • Circulation pump speed setting.
  • Machine pressurisation/ depressurisation.
  • Controlling the rate of heating & cooling, final temperatures and holding time.
  • Signals for preparation and control of the transferring of the contents of a side chemicals tank, followed by automatic rinsing.
  • Programmed Dosing.
  • Parallel preparation of Stock Tank, including: filling, heating, signal for addition of dyes/chemicals and transferring to the main dyeing vessel.
  • Combined rinsing and cooling.
  • Draining facility for Normal drain, High Temperature drain and Pressure drain.
  • Signals for operator intervention, including: load, unload, sample, check, etc.
  • Automatic fault finding system.
Automation Textile Dyeing Machine - Dalal Engineering

Additional Features

Pressure Extraction:

The machine is pressurized by compressed air to remove excess heavily coloured water reducing water consumption and rinsing time. The process is repeated at the end of the dye cycle to remove excess water making handling of the carrier easy and keeping the area of operation clean.

Differential Pressure Controller:

Continuously monitors differential pressure of packages and automatically adjusts pump speed to achieve pre-set values reducing power consumption considerably.

Conductivity Meter:

Measures TDS of dye-bath continuously. This application results in saving of time, quantity of water and electrical power.

pH Meter:

Helps in monitoring of pH of dye bath throughout dye

Shock Rinse:

Reduces fresh water consumption due to efficient washing and improves rubbing fastness. Selection of this application however, depends on the class of dyestuffs and its suitability for such a treatment.

Dye Kitchen Equipment:

Automated dye-kitchen equipment interfaced with microprocessor of main machine also available.

Operating System:

Air pad is the standard production machine. However, for specific needs we can manufacture machines having Fully Flooded or Dual mode system.

Heating System:

Apart from steam as heating media, we can also deliver machines suitable for Hot Oil or Pressurized Hot Water system.

Coupling:

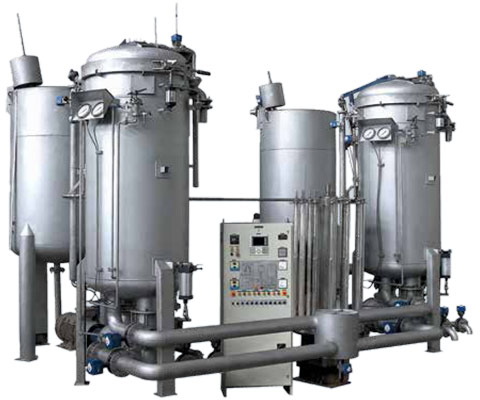

Coupling of two or more machines of identical capacity with automation can be supplied for dyeing larger capacity lots.

Material Carriers

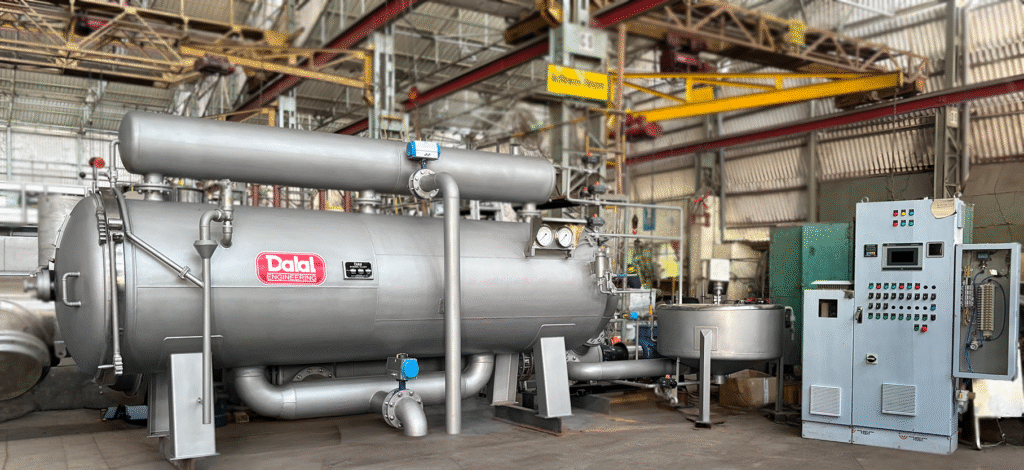

Interchangeable Material Carriers of a wide range for substrates in different forms are available with Dalal. For tall machines, specially designed double decker carriers and warp beam carriers are also available.

Cheese Carrier

Cheese carriers feature spindles that are tailor-made to suit various types of dye centers and package dimensions. Cheese carriers supplied with self lowering locking devices.

Top Carrier

These carriers are designed for easy loading and unloading of tops and are constructed specially to ensure years of trouble free service. Gravity lowering caps help to take care of shrinkage during the process.

Variable Load Cheese Carrier

Suitable for dyeing reduced batch sizes up to 50% of the rated capacity.

Unloading Basket

Recommended for large dia/ higher capacity machines. Helps reduces time taken to unload the yarn packages from carrier. Most importantly it reduces man power required.

Fibre / Muff Carrier

Packing Cylinders suitable for dyeing loose stock and muffs are robustly designed. They are supplied with lifting plates for easy unloading of material. Heavy duty packing cylinders are designed for hydraulic pressing. Special types can go into a centrifugal hydro extractor along with the material.

Zipper Tape Carrier

Suitable to receive various sizes of spools (bobbins)

Locking Devices

Various types of locking devices and plates are supplied to suit individual requirements of different packages.

Rigid Lock Nut

Self lowering Lock Nut with plate

Spring Loaded Gravity Lock Nut

Presses

Pneumatic Press

To press down dye-spring packages on to the cheese carrier spindles including movable turntable trolley.

Hydraulic Press

To press down loose stock and helenca muffs into packing cylinder with suitable adopters and movable turntable trolley.
